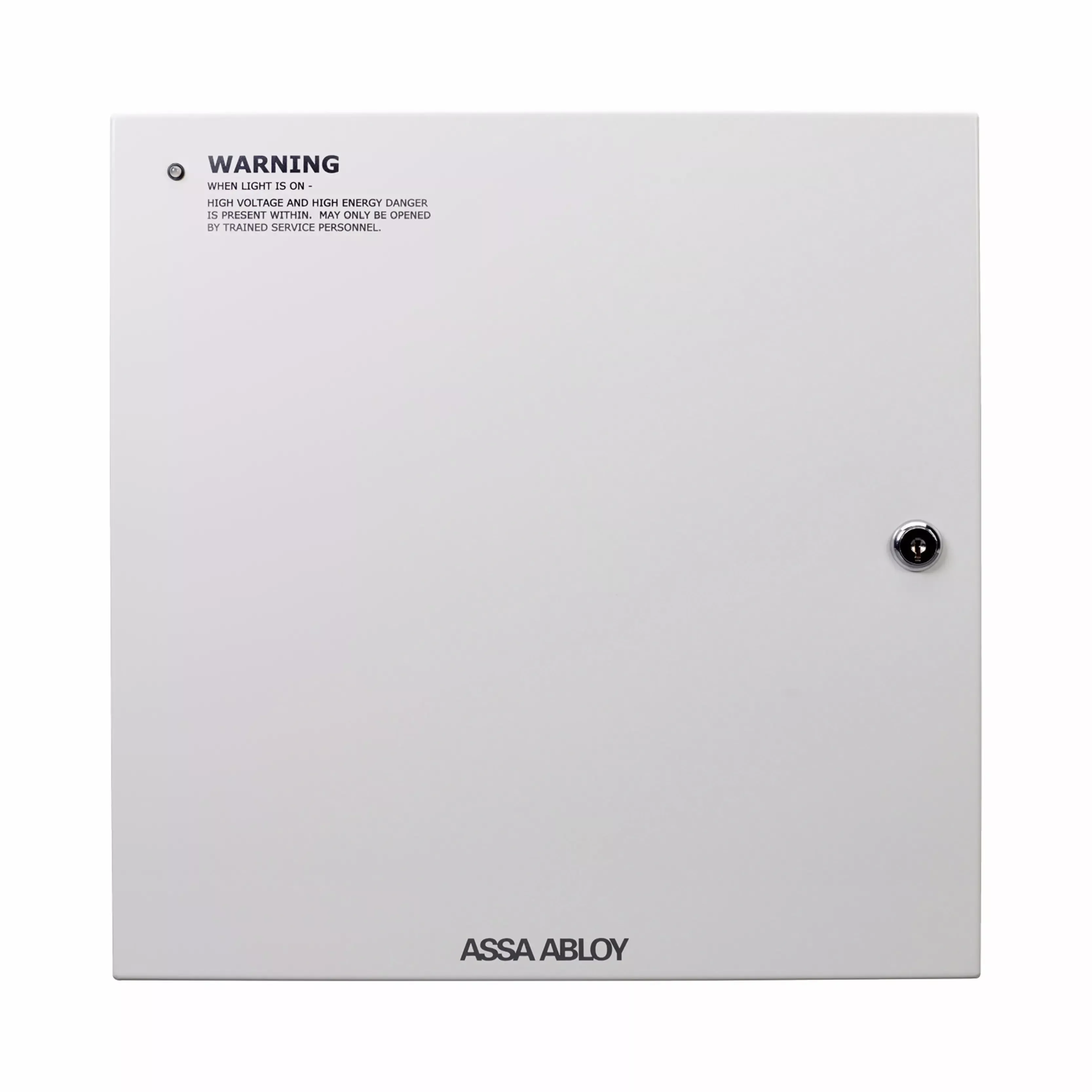

The Securitron AQD Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with an integrated battery charger. They provide 1 to 6 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
- AQD1
- 1 Amp
- AQD2
- 2 Amp
- AQD4
- 4 Amp
- AQD6
- 6 Amp
AQD1
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Integrated battery charging circuit prevents overvoltage on locking devices
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD2
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 85% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V and 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD4
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 89% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V or 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
AQD6
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 91% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V or 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
Power Distribution Boards
- PDB-4F/C & PDB-8F/C
- Power Distribution Boards
- PDB-1R
- Fire Alarm Interface
- PDB-8C1R / 8F1R
- Power Distribution Boards
- PDB-8F8R / 8C8R
- Access Control Boards with Fire Alarm Interface
Applictions
To Power :
- Magnetic Locks
- Electric Strikes
- Card Readers
- Sensors
- Access Control Boards
Specifications
- Environmental
- -4˚ to 122˚ F (-20˚ to 50˚ C)
- Power Supply Type
- Switching
- Voltage
- 12/24
